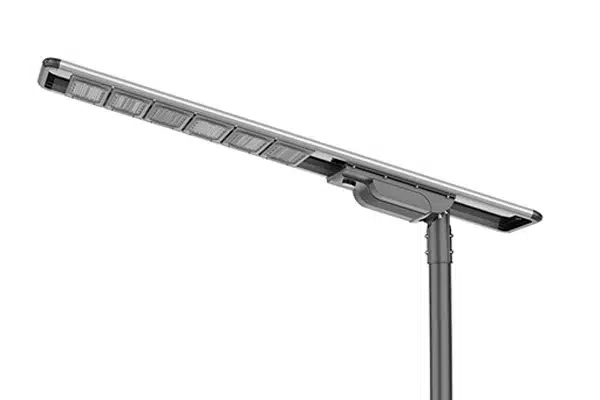

FX Series 40W-120W All In One Solar Street Light
FX Series 40W-120W All In One Solar Street Light

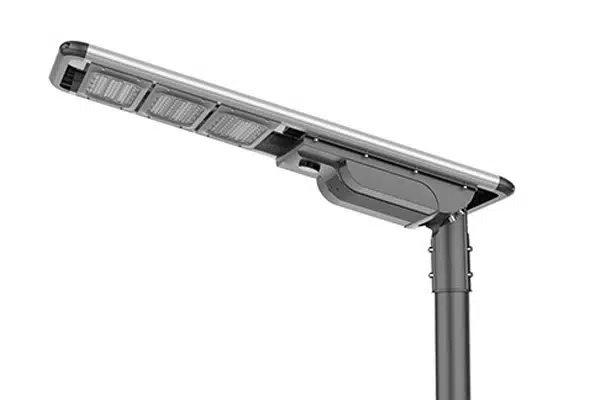

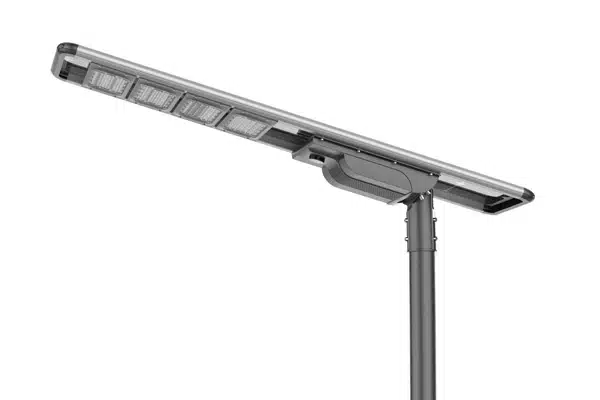

The lamp body is made of dia casting aluminium to withstand high temperatures and prevent rusting, and the LEDs are modular for easy replacement. The mounting angle of the street light is adjustable for different pole installations. Available in various wattages including 40W, 50W, 60W, 80W, 100W and 120W.
Features:
- Patented design allows you to avoid price competition
- By using CREE 220LM/W, 140° beam angle LED Chip for a wider irradiation area
- Lithium iron phosphate battery, 2000 cycles @ 80% DOD
- Optional CCTV monitoring for remote monitoring
- Energy saving and environmental protection, preferred by municipal street lights
- All-in-one design, easy to install and save labour costs
Product Catalog
Product Construction and Materials
This all in one solar streetlight is with Aluminum Frame treated for proximity to salt water, resistant to thermic variations, mechanical shocks and vibrations.
The LED module is with PC coating. A manual switch is included in the unit, to avoid controller self-discharge during transportation / maintenance
It is ECO design, and the street light angle can be adjusted 0° or 90°

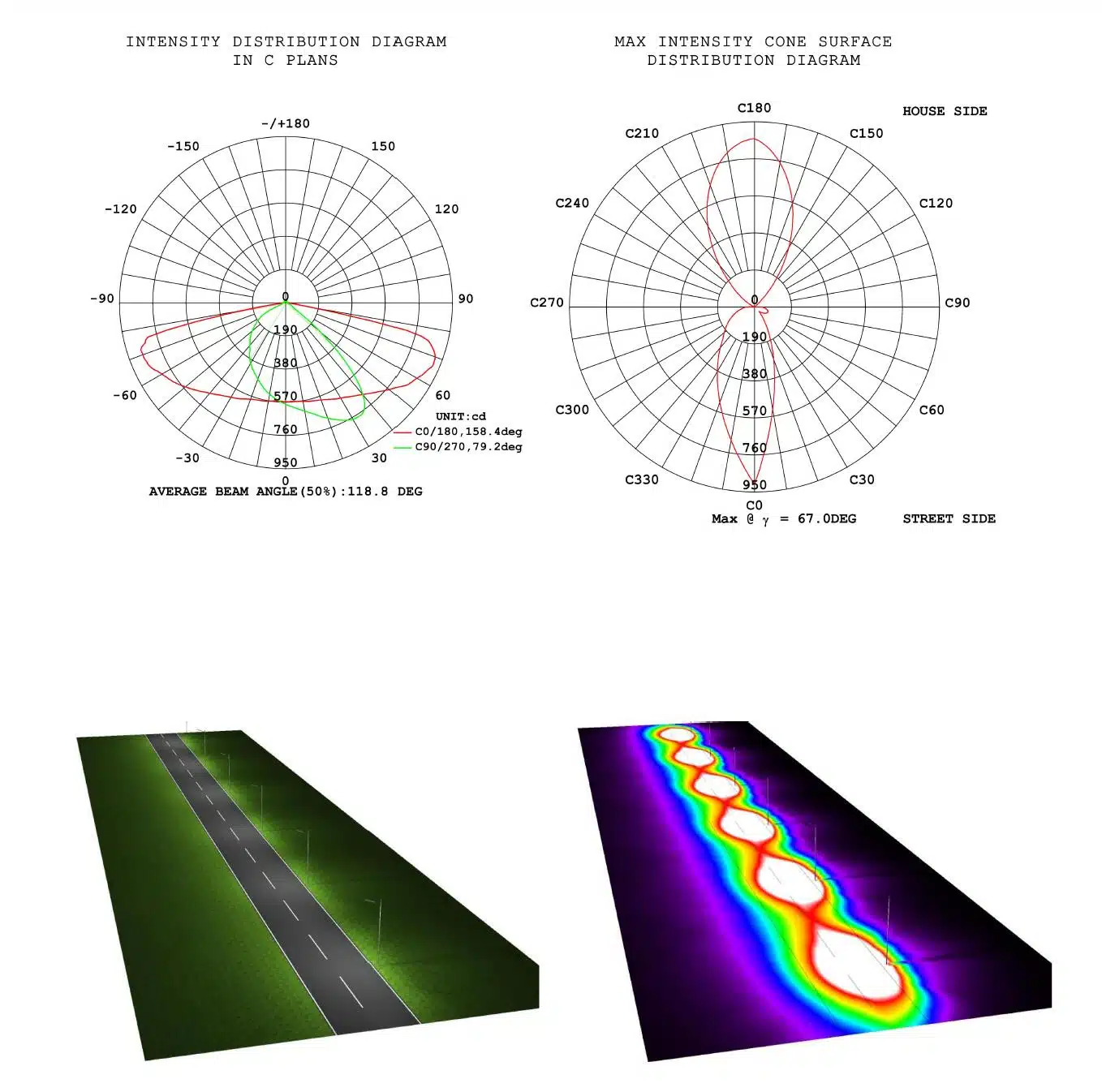

Perfect Light Distribution Curve

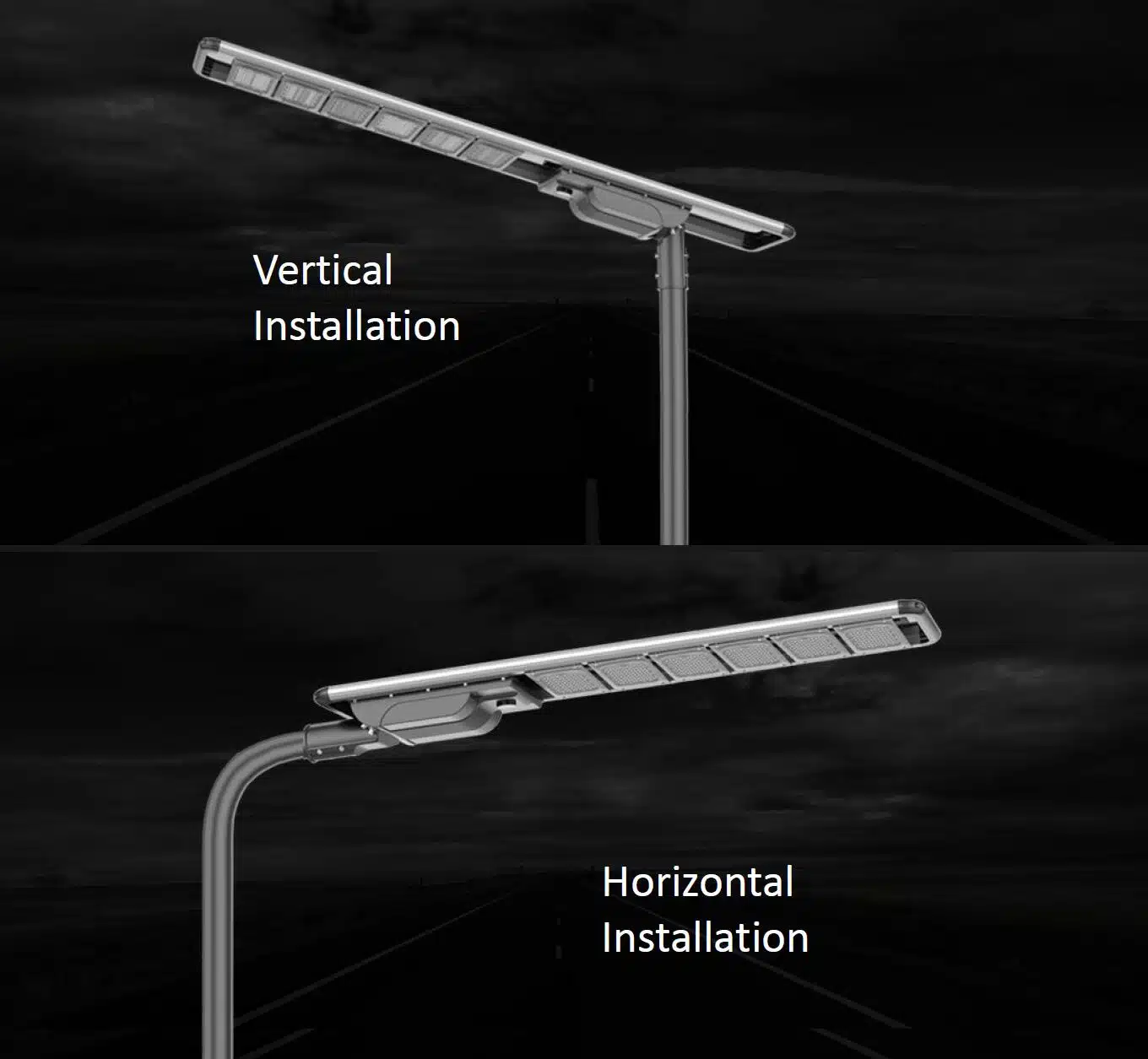

2 Installation Ways for Selections
Specification
| Led Source | FX-40W | FX-50W | FX-60W | FX-80W | FX-100W | FX-120W |
| Mono Solar Panel | 18V 65W | 18V 70W | 18V 80W | 18V 100W | 18V 130W | 18V 140W |
| LifePO4 Battery | 12.8V 27AH | 12.8V 36AH | 12.8V 42AH | 12.8V 57AH | 12.8V 63AH | 12.8V 72AH |
| LED(Bridgelux) |
3030/ 96PCS |
3030/ 144PCS |
3030/ 144PCS |
3030/ 192PCS |
3030/ 240PCS |
3030/ 288PCS |
| Colr Temperature | 2700K-6500K, RA>70 | |||||
| Brightness | 220LM/w | |||||
| Working Time | 12-15hours, 10-12 cloudy / rainy days | |||||
| Charging Time | 6-8hours | |||||
| Mounting Caliber | 70-76mm (suggestion) | |||||
| Working Temperature | -25C-+65C | |||||
| Body Sensor | 160°, >9m , Activated by customer's need | |||||
| Battery Power Indicators | 100%-75%-50%-25% | |||||
| Fault indicator | RED/BLUE/GREEN | |||||
| IP Rating/IK Class | IP65/IK10 | |||||
| Mounting Height | 6-7m | 6-8m | 6-8m | 8-9m | 9-11m | 10-12m |
